message.h File Reference
LLMessageSystem class header file. More...

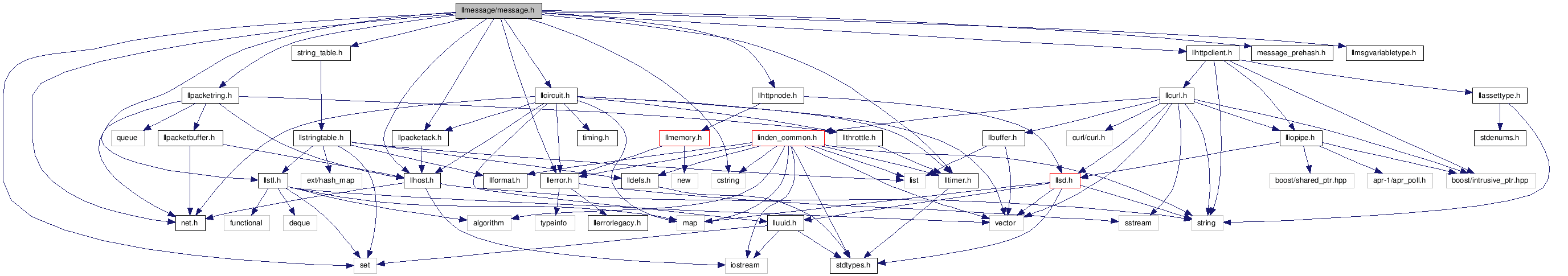

#include <cstring>
#include <set>
#include "llerror.h"
#include "net.h"
#include "string_table.h"
#include "llcircuit.h"
#include "lltimer.h"
#include "llpacketring.h"
#include "llhost.h"
#include "llhttpclient.h"
#include "llhttpnode.h"
#include "llpacketack.h"
#include "message_prehash.h"
#include "llstl.h"
#include "llmsgvariabletype.h"
Go to the source code of this file.
Detailed Description
LLMessageSystem class header file.
- LicenseInfo
- firstyear=2001&license=viewergpl
Copyright (c) 2001-2008, Linden Research, Inc.
Second Life Viewer Source Code The source code in this file ("Source Code") is provided by Linden Lab to you under the terms of the GNU General Public License, version 2.0 ("GPL"), unless you have obtained a separate licensing agreement ("Other License"), formally executed by you and Linden Lab. Terms of the GPL can be found in doc/GPL-license.txt in this distribution, or online at http://secondlifegrid.net/programs/open_source/licensing/gplv2
There are special exceptions to the terms and conditions of the GPL as it is applied to this Source Code. View the full text of the exception in the file doc/FLOSS-exception.txt in this software distribution, or online at http://secondlifegrid.net/programs/open_source/licensing/flossexception
By copying, modifying or distributing this software, you acknowledge that you have read and understood your obligations described above, and agree to abide by those obligations.
ALL LINDEN LAB SOURCE CODE IS PROVIDED "AS IS." LINDEN LAB MAKES NO WARRANTIES, EXPRESS, IMPLIED OR OTHERWISE, REGARDING ITS ACCURACY, COMPLETENESS OR PERFORMANCE. $/LicenseInfo$
Definition in file message.h.
Typedef Documentation
| typedef void(* msg_exception_callback)(LLMessageSystem *, void *, EMessageException) |
Enumeration Type Documentation
| enum EMessageException |
| enum EPacketHeaderLayout |
Function Documentation
| void end_messaging_system | ( | ) |
Definition at line 2672 of file message.cpp.
References LLTransferManager::cleanup(), gTransferManager, LL_INFOS, llendl, NULL, LLMessageSystem::stopLogging(), LLMessageSystem::summarizeLogs(), and LLTransferTargetVFile::updateQueue().
Referenced by LLAppViewer::cleanup().
| static void* htonmemcpy | ( | void * | vs, | |
| const void * | vct, | |||
| EMsgVariableType | type, | |||
| size_t | n | |||
| ) | [inline, static] |
Definition at line 790 of file message.h.
References i, llendl, llerrs, MVT_BOOL, MVT_F32, MVT_F64, MVT_FIXED, MVT_IP_ADDR, MVT_IP_PORT, MVT_LLQuaternion, MVT_LLUUID, MVT_LLVector3, MVT_LLVector3d, MVT_LLVector4, MVT_S16, MVT_S16Array, MVT_S32, MVT_S64, MVT_S8, MVT_U16, MVT_U16Quat, MVT_U16Vec3, MVT_U32, MVT_U64, MVT_U8, MVT_VARIABLE, and S32.
Referenced by LLMsgVarData::addData(), buildBlock(), LLTemplateMessageReader::decodeData(), LLGestureList::deserialize(), LLGesture::deserialize(), ntohmemcpy(), LLDataPackerBinaryBuffer::packBinaryData(), LLDataPackerBinaryBuffer::packBinaryDataFixed(), LLDataPackerBinaryBuffer::packColor4(), LLDataPackerBinaryBuffer::packColor4U(), LLHUDEffectSpiral::packData(), LLHUDEffectPointAt::packData(), LLHUDEffectLookAt::packData(), LLHUDEffectBeam::packData(), LLDataPackerBinaryBuffer::packF32(), LLSelectMgr::packMultipleUpdate(), LLDataPackerBinaryBuffer::packS32(), LLDataPackerBinaryBuffer::packString(), LLTextureAnim::packTAMessage(), LLPrimitive::packTEField(), LLDataPackerBinaryBuffer::packU16(), LLDataPackerBinaryBuffer::packU32(), LLDataPackerBinaryBuffer::packUUID(), LLDataPackerBinaryBuffer::packVector2(), LLDataPackerBinaryBuffer::packVector3(), LLDataPackerBinaryBuffer::packVector4(), LLViewerObject::processUpdateMessage(), LLXfer::sendPacket(), LLGestureList::serialize(), LLGesture::serialize(), LLDataPackerBinaryBuffer::unpackBinaryData(), LLDataPackerBinaryBuffer::unpackBinaryDataFixed(), LLDataPackerBinaryBuffer::unpackColor4(), LLDataPackerBinaryBuffer::unpackColor4U(), LLHUDEffectSpiral::unpackData(), LLHUDEffectPointAt::unpackData(), LLHUDEffectLookAt::unpackData(), LLHUDEffectBeam::unpackData(), LLDataPackerBinaryBuffer::unpackF32(), LLDataPackerBinaryBuffer::unpackS32(), LLTextureAnim::unpackTAMessage(), LLPrimitive::unpackTEField(), LLDataPackerBinaryBuffer::unpackU16(), LLDataPackerBinaryBuffer::unpackU32(), LLDataPackerBinaryBuffer::unpackUUID(), LLDataPackerBinaryBuffer::unpackVector2(), LLDataPackerBinaryBuffer::unpackVector3(), and LLDataPackerBinaryBuffer::unpackVector4().
| void* ntohmemcpy | ( | void * | s, | |
| const void * | ct, | |||
| EMsgVariableType | type, | |||
| size_t | n | |||
| ) | [inline] |
Definition at line 950 of file message.h.
References htonmemcpy().
Referenced by LLXferManager::processReceiveData().
| void null_message_callback | ( | LLMessageSystem * | msg, | |
| void ** | data | |||
| ) |
Definition at line 3286 of file message.cpp.
Referenced by LLMessageSystem::establishBidirectionalTrust(), idle_startup(), and start_messaging_system().
| BOOL start_messaging_system | ( | const std::string & | template_name, | |
| U32 | port, | |||
| S32 | version_major, | |||
| S32 | version_minor, | |||
| S32 | version_patch, | |||
| BOOL | b_dump_prehash_file, | |||
| const std::string & | secret, | |||
| const LLUseCircuitCodeResponder * | responder = NULL | |||
| ) |
Definition at line 2478 of file message.cpp.
References _PREHASH_AddCircuitCode, _PREHASH_CloseCircuit, _PREHASH_CompletePingCheck, _PREHASH_CreateTrustedCircuit, _PREHASH_DenyTrustedCircuit, _PREHASH_OpenCircuit, _PREHASH_PacketAck, _PREHASH_StartPingCheck, _PREHASH_UseCircuitCode, close_circuit(), dump_prehash_files(), FALSE, g_shared_secret, gPrehashVersionNumber, gTransferManager, LLTransferManager::init(), LLMessageSystem::isOK(), LL_DEBUGS, LL_ENDL, LL_ERRS, LL_INFOS, llendl, LLMessageSystem::LLMessageSystem(), LLMessageSystem::mMessageFileVersionNumber, NULL, null_message_callback(), open_circuit(), process_complete_ping_check(), process_create_trusted_circuit(), process_deny_trusted_circuit(), process_packet_ack(), process_start_ping_check(), LLMessageSystem::processAddCircuitCode(), LLMessageSystem::processError(), LLMessageSystem::processUseCircuitCode(), LLMessageSystem::setHandlerFunc(), LLMessageSystem::setHandlerFuncFast(), and TRUE.
Referenced by tut::LLTemplateMessageBuilderTestData::defaultTemplate(), idle_startup(), and tut::LLMessageSystemTestData::LLMessageSystemTestData().
Variable Documentation
Definition at line 1820 of file message.cpp.
| const U8 LL_ACK_FLAG = 0x10 |
Definition at line 133 of file message.h.
Referenced by LLMessageSystem::checkMessages(), and LLMessageSystem::sendMessage().
| const S32 LL_DEFAULT_RELIABLE_RETRIES = 3 |
Definition at line 146 of file message.h.
Referenced by LLMessageSystem::sendReliable(), and LLTransferSourceChannel::updateTransfers().
| const F32 LL_FILE_XFER_TIMEOUT_FACTOR = 5.f / 1000.f |
| const F32 LL_LOST_TIMEOUT_FACTOR = 16.f / 1000.f |
| const F32 LL_MAX_LOST_TIMEOUT = 5.f |
| const F32 LL_MINIMUM_RELIABLE_TIMEOUT_SECONDS = 1.f |
Definition at line 147 of file message.h.
Referenced by LLCircuitData::resendUnackedPackets(), and LLMessageSystem::sendReliable().
| const F32 LL_MINIMUM_SEMIRELIABLE_TIMEOUT_SECONDS = 1.f |
Definition at line 148 of file message.h.
Referenced by LLMessageSystem::flushSemiReliable(), and LLMessageSystem::sendSemiReliable().
| const S32 LL_MINIMUM_VALID_PACKET_SIZE = LL_PACKET_ID_SIZE + 1 |
Definition at line 136 of file message.h.
Referenced by LLMessageSystem::checkMessages(), LLTemplateMessageReader::decodeTemplate(), and LLMessageSystem::zeroCodeExpand().
| const F32 LL_PING_BASED_TIMEOUT_DUMMY = 0.0f |
| const U8 LL_RELIABLE_FLAG = 0x40 |
Definition at line 131 of file message.h.
Referenced by LLMessageSystem::checkMessages(), and LLMessageSystem::sendMessage().
| const F32 LL_RELIABLE_TIMEOUT_FACTOR = 5.f / 1000.f |
Definition at line 155 of file message.h.
Referenced by LLCircuitData::resendUnackedPackets(), and LLMessageSystem::sendReliable().
| const U8 LL_RESENT_FLAG = 0x20 |
Definition at line 132 of file message.h.
Referenced by LLMessageSystem::checkMessages(), and LLCircuitData::resendUnackedPackets().
| const F32 LL_SEMIRELIABLE_TIMEOUT_FACTOR = 5.f / 1000.f |
Definition at line 154 of file message.h.
Referenced by LLMessageSystem::flushSemiReliable(), and LLMessageSystem::sendSemiReliable().
| const U8 LL_ZERO_CODE_FLAG = 0x80 |
Definition at line 130 of file message.h.
Referenced by zero_code(), and LLMessageSystem::zeroCodeExpand().
| const S32 MAX_BLOCKS = 255 |
Definition at line 128 of file message.h.
Referenced by LLTemplateMessageBuilder::isMessageFull(), and LLTemplateMessageBuilder::nextBlock().
| const S32 MAX_BUFFER_SIZE = NET_BUFFER_SIZE |
Definition at line 127 of file message.h.
Referenced by buildBlock(), LLMessageSystem::sendMessage(), zero_code(), LLMessageSystem::zeroCodeAdjustCurrentSendTotal(), and LLMessageSystem::zeroCodeExpand().
| const S32 MAX_MESSAGE_COUNT_NUM = 1024 |
Definition at line 160 of file message.h.
Referenced by LLMessageSystem::logMsgFromInvalidCircuit(), LLMessageSystem::logTrustedMsgFromUntrustedCircuit(), and LLMessageSystem::logValidMsg().
| const S32 MAX_MESSAGE_INTERNAL_NAME_SIZE = 255 |
| const S32 MESSAGE_MAX_PER_FRAME = 400 |
| const U32 MESSAGE_MAX_STRINGS_LENGTH = 64 |
| const U32 MESSAGE_NUMBER_OF_HASH_BUCKETS = 8192 |
Definition at line 67 of file message.h.
Referenced by dump_prehash_files(), LLMessageStringTable::getString(), LLMessageStringTable::LLMessageStringTable(), and message_hash_my_string().
