LLFrameStats Class Reference

#include <llframestats.h>

Collaboration diagram for LLFrameStats:

Collaboration graph
[legend]

List of all members.

Public Types

enum  EStat {
  IDLE_NETWORK, AGENT_MISC, OBJECT_UPDATE, CLEAN_DEAD,
  UPDATE_EFFECTS, IMAGE_UPDATE, UPDATE_MOVE, UPDATE_PARTICLES,
  UPDATE_CULL, UPDATE_GEOM, AUDIO, UPDATE_TEX_STATS,
  STATE_SORT, REBUILD, RENDER_SYNC, RENDER_GEOM,
  RENDER_UI, MISC_END, NUM_STATS
}

Public Member Functions

 LLFrameStats ()
virtual ~LLFrameStats ()
void setFilename (const std::string &filename)
void setSummaryFilename (const std::string &filename)
void setTrackStats (const BOOL track_stats)
void start (const EStat stat_name)
void addFrameData ()
void dump ()
const char * getCurStatName () const
LLStat & getStat (const S32 i)
const char * getStatLabel (const S32 i) const
LLColor4 getStatColor (const S32 i) const

Static Public Member Functions

static void startLogging (void *)
static void stopLogging (void *)
static void timedLogging60 (void *)
static void timedLogging30 (void *)
static void timedLogging10 (void *)

Private Member Functions

void stop ()

Private Attributes

LLString mFilename
LLString mSummaryFilename
BOOL mTrackStats
LLTimer mTimer
BOOL mUseTimer
F32 mStopTime
EStat mCurrentStat
LLStat mStats [NUM_STATS]
LLDynamicArray< FrameData > mFrameData

Static Private Attributes

static char * sStatLabels [NUM_STATS]
static LLColor4 sStatColors [NUM_STATS]

Classes

class  FrameData

Detailed Description

Definition at line 42 of file llframestats.h.

Member Enumeration Documentation

enum LLFrameStats::EStat

Enumerator:
IDLE_NETWORK
AGENT_MISC
OBJECT_UPDATE
CLEAN_DEAD
UPDATE_EFFECTS
IMAGE_UPDATE
UPDATE_MOVE
UPDATE_PARTICLES
UPDATE_CULL
UPDATE_GEOM
AUDIO
UPDATE_TEX_STATS
STATE_SORT
REBUILD
RENDER_SYNC
RENDER_GEOM
RENDER_UI
MISC_END
NUM_STATS

Definition at line 46 of file llframestats.h.

Constructor & Destructor Documentation

LLFrameStats::LLFrameStats (  )

Definition at line 86 of file llframestats.cpp.

References FALSE, mCurrentStat, mFilename, mStopTime, mTrackStats, mUseTimer, and NUM_STATS.

LLFrameStats::~LLFrameStats (  )  [virtual]

Definition at line 96 of file llframestats.cpp.

References mFrameData.

Member Function Documentation

void LLFrameStats::setFilename ( const std::string &  filename  )  [inline]

Definition at line 72 of file llframestats.h.

References mFilename.

Referenced by idle_startup().

Here is the caller graph for this function:

void LLFrameStats::setSummaryFilename ( const std::string &  filename  )  [inline]

Definition at line 73 of file llframestats.h.

References mSummaryFilename.

Referenced by idle_startup().

Here is the caller graph for this function:

void LLFrameStats::setTrackStats ( const BOOL  track_stats  )

Definition at line 252 of file llframestats.cpp.

References dump(), llendl, llinfos, mFrameData, and mTrackStats.

Referenced by addFrameData(), settings_to_globals(), startLogging(), stopLogging(), timedLogging10(), timedLogging30(), and timedLogging60().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLFrameStats::start ( const EStat  stat_name  )

Definition at line 101 of file llframestats.cpp.

References mCurrentStat, mStats, LLStat::start(), and stop().

Referenced by display(), LLAppViewer::idle(), and LLPipeline::renderGeom().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLFrameStats::addFrameData (  )

Definition at line 120 of file llframestats.cpp.

References FALSE, LLStat::getCurrentDuration(), LLTimer::getElapsedTimeF32(), LLViewerObjectList::getNumObjects(), gFullObjectUpdates, gObjectList, gPipeline, gTerseObjectUpdates, i, llendl, llinfos, mCurrentStat, LLFrameStats::FrameData::mDuration, mFrameData, LLFrameStats::FrameData::mNumFullUpdates, LLFrameStats::FrameData::mNumObjects, LLFrameStats::FrameData::mNumTerseUpdates, LLFrameStats::FrameData::mNumTriangles, mStats, mStopTime, mTimer, LLFrameStats::FrameData::mTotalDuration, mTrackStats, LLPipeline::mTrianglesDrawn, mUseTimer, NUM_STATS, S32, and setTrackStats().

Referenced by LLAppViewer::idle().

Here is the call graph for this function:

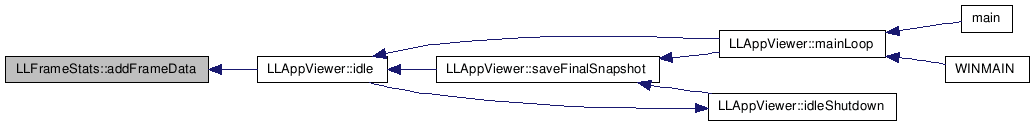

Here is the caller graph for this function:

void LLFrameStats::dump (  )

Definition at line 162 of file llframestats.cpp.

References LLFile::fopen(), gDirUtilp, LLDir::getExpandedFilename(), i, j, LL_MAX_PATH, LL_PATH_LOGS, llendl, llinfos, mFrameData, mSummaryFilename, NUM_STATS, S32, and sStatLabels.

Referenced by LLAppViewer::disconnectViewer(), and setTrackStats().

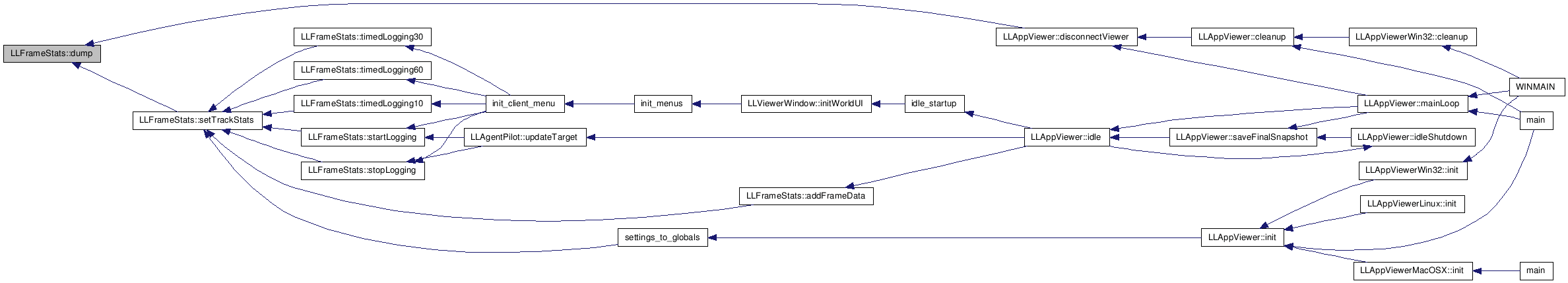

Here is the call graph for this function:

Here is the caller graph for this function:

const char * LLFrameStats::getCurStatName (  )  const

Definition at line 309 of file llframestats.cpp.

References getStatLabel(), and mCurrentStat.

Here is the call graph for this function:

LLStat& LLFrameStats::getStat ( const S32  i  )  [inline]

Definition at line 85 of file llframestats.h.

References mStats.

Referenced by LLFrameStatView::setup().

Here is the caller graph for this function:

const char* LLFrameStats::getStatLabel ( const S32  i  )  const [inline]

Definition at line 86 of file llframestats.h.

References sStatLabels.

Referenced by getCurStatName(), and LLFrameStatView::setup().

Here is the caller graph for this function:

LLColor4 LLFrameStats::getStatColor ( const S32  i  )  const [inline]

Definition at line 87 of file llframestats.h.

References sStatColors.

Referenced by LLFrameStatView::setup().

Here is the caller graph for this function:

void LLFrameStats::startLogging ( void *   )  [static]

Definition at line 275 of file llframestats.cpp.

References setTrackStats(), and TRUE.

Referenced by init_client_menu(), and LLAgentPilot::updateTarget().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLFrameStats::stopLogging ( void *   )  [static]

Definition at line 280 of file llframestats.cpp.

References FALSE, and setTrackStats().

Referenced by init_client_menu(), and LLAgentPilot::updateTarget().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLFrameStats::timedLogging60 ( void *   )  [static]

Definition at line 285 of file llframestats.cpp.

References mStopTime, mTimer, mUseTimer, LLTimer::reset(), setTrackStats(), and TRUE.

Referenced by init_client_menu().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLFrameStats::timedLogging30 ( void *   )  [static]

Definition at line 293 of file llframestats.cpp.

References mStopTime, mTimer, mUseTimer, LLTimer::reset(), setTrackStats(), and TRUE.

Referenced by init_client_menu().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLFrameStats::timedLogging10 ( void *   )  [static]

Definition at line 301 of file llframestats.cpp.

References mStopTime, mTimer, mUseTimer, LLTimer::reset(), setTrackStats(), and TRUE.

Referenced by init_client_menu().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLFrameStats::stop (  )  [private]

Definition at line 108 of file llframestats.cpp.

References LLStat::addValue(), mCurrentStat, mStats, and NUM_STATS.

Referenced by start().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

LLString LLFrameStats::mFilename [private]

Definition at line 110 of file llframestats.h.

Referenced by LLFrameStats(), and setFilename().

LLString LLFrameStats::mSummaryFilename [private]

Definition at line 111 of file llframestats.h.

Referenced by dump(), and setSummaryFilename().

BOOL LLFrameStats::mTrackStats [private]

Definition at line 113 of file llframestats.h.

Referenced by addFrameData(), LLFrameStats(), and setTrackStats().

LLTimer LLFrameStats::mTimer [private]

Definition at line 114 of file llframestats.h.

Referenced by addFrameData(), timedLogging10(), timedLogging30(), and timedLogging60().

BOOL LLFrameStats::mUseTimer [private]

Definition at line 115 of file llframestats.h.

Referenced by addFrameData(), LLFrameStats(), timedLogging10(), timedLogging30(), and timedLogging60().

F32 LLFrameStats::mStopTime [private]

Definition at line 116 of file llframestats.h.

Referenced by addFrameData(), LLFrameStats(), timedLogging10(), timedLogging30(), and timedLogging60().

EStat LLFrameStats::mCurrentStat [private]

Definition at line 118 of file llframestats.h.

Referenced by addFrameData(), getCurStatName(), LLFrameStats(), start(), and stop().

LLStat LLFrameStats::mStats[NUM_STATS] [private]

Definition at line 120 of file llframestats.h.

Referenced by addFrameData(), getStat(), start(), and stop().

char * LLFrameStats::sStatLabels [static, private]

Initial value:

 {
                                        "IdleNetwork",
                                        "AgentMisc",
                                        "ObjectUpdate",
                                        "CleanDead",
                                        "UpdateEffects",
                                        "ImageUpdate",
                                        "UpdateMove",
                                        "UpdateParticles",
                                        "UpdateCull",
                                        "UpdateGeom",
                                        "Audio",
                                        "UpdateTexStats",
                                        "StateSort",
                                        "Rebuild",
                                        "RenderSync",
                                        "RenderGeom",
                                        "RenderUI",
                                        "MiscEnd"
                                        }

Definition at line 121 of file llframestats.h.

Referenced by dump(), and getStatLabel().

LLColor4 LLFrameStats::sStatColors [static, private]

Initial value:

 {
                                                                                LLColor4(0.0f, 0.5f, 1.0f, 0.5f),
                                                                                LLColor4(0.0f, 0.5f, 0.0f, 0.5f),
                                                                                LLColor4(0.0f, 0.0f, 1.0f, 0.5f),
                                                                                LLColor4(0.5f, 0.25f,0.5f, 0.5f),
                                                                                LLColor4(0.5f, 0.5f, 0.5f, 0.5f),
                                                                                LLColor4(0.5f, 1.0f, 0.0f, 0.5f),
                                                                                LLColor4(1.0f, 1.0f, 0.0f, 0.5f),
                                                                                LLColor4(0.0f, 0.0f, 1.0f, 0.5f),
                                                                                LLColor4(1.0f, 0.0f, 0.0f, 0.5f),
                                                                                LLColor4(0.5f, 0.0f, 0.0f, 0.5f),
                                                                                LLColor4(0.0f, 0.5f, 0.5f, 0.5f),
                                                                                LLColor4(0.5f, 1.0f, 1.0f, 0.5f),
                                                                                LLColor4(0.0f, 0.0f, 0.5f, 0.5f),
                                                                                LLColor4(1.0f, 0.0f, 1.0f, 0.5f),
                                                                                LLColor4(0.0f, 0.5f, 1.0f, 0.5f),
                                                                                LLColor4(1.0f, 1.0f, 1.0f, 0.5f),
                                                                                LLColor4(0.5f, 0.5f, 0.5f, 0.5f),
                                                                                LLColor4(1.0f, 0.0f, 0.0f, 0.5f)
                                                                                }

Definition at line 122 of file llframestats.h.

Referenced by getStatColor().

LLDynamicArray<FrameData> LLFrameStats::mFrameData [private]

Definition at line 123 of file llframestats.h.

Referenced by addFrameData(), dump(), setTrackStats(), and ~LLFrameStats().

The documentation for this class was generated from the following files:
