LLPumpIO Class Reference

Class to manage sets of io chains. More...

#include <llpumpio.h>

Collaboration diagram for LLPumpIO:

List of all members.

Public Types

enum EControl { PAUSE, RESUME }

Enumeration to send commands to the pump. More...

typedef std::vector
< LLIOPipe::ptr_t > chain_t

Typedef for having a chain of pipes.

typedef std::vector< LLLinkInfo > links_t

Typedef for having a chain of LLLinkInfo instances.

Public Member Functions

LLPumpIO (apr_pool_t *pool)

Constructor.

~LLPumpIO ()

Destructor.

bool prime (apr_pool_t *pool)

Prepare this pump for usage.

bool addChain (const chain_t &chain, F32 timeout)

Add a chain to this pump and process in the next cycle.

bool addChain (const links_t &links, LLIOPipe::buffer_ptr_t data, LLSD context, F32 timeout)

Add a chain to this pump and process in the next cycle.

bool setTimeoutSeconds (F32 timeout)

Set or clear a timeout for the running chain.

bool setConditional (LLIOPipe *pipe, const apr_pollfd_t *poll)

Set up file descriptors for for the running chain.

S32 setLock ()

Lock the current chain.

void clearLock (S32 key)

Clears the identified lock.

bool sleepChain (F64 seconds)

Stop processing a chain for a while.

bool copyCurrentLinkInfo (links_t &links) const

Copy the currently running chain link info.

void pump (const S32 &poll_timeout)

Call this method to call process on all running chains.

void pump ()

bool respond (LLIOPipe *pipe)

Add a chain to a special queue which will be called during the next call to callback() and then dropped from the queue.

bool respond (const links_t &links, LLIOPipe::buffer_ptr_t data, LLSD context)

Add a chain to a special queue which will be called during the next call to callback() and then dropped from the queue.

void callback ()

Run through the callback queue and call process().

void control (EControl op)

Send a command to the pump.

running_chains_t::size_type runningChains () const

Return number of running chains.

Protected Types

enum EState { NORMAL, PAUSING, PAUSED }

State of the pump. More...

typedef std::vector< LLChainInfo > pending_chains_t

typedef std::list< LLChainInfo > running_chains_t

typedef running_chains_t::iterator current_chain_t

typedef std::vector< LLChainInfo > callbacks_t

Protected Member Functions

void initialize (apr_pool_t *pool)

void cleanup ()

void rebuildPollset ()

Given the internal state of the chains, rebuild the pollset.

void processChain (LLChainInfo &chain)

Process the chain passed in.

bool handleChainError (LLChainInfo &chain, LLIOPipe::EStatus error)

Rewind through the chain to try to recover from an error.

Protected Attributes

EState mState

bool mRebuildPollset

apr_pollset_t * mPollset

S32 mPollsetClientID

S32 mNextLock

std::set< S32 > mClearLocks

LLRunner mRunner

pending_chains_t mPendingChains

running_chains_t mRunningChains

current_chain_t mCurrentChain

callbacks_t mPendingCallbacks

callbacks_t mCallbacks

apr_pool_t * mPool

apr_pool_t * mCurrentPool

S32 mCurrentPoolReallocCount

int * mChainsMutex

int * mCallbackMutex

Classes

struct LLChainInfo

struct LLLinkInfo

Struct to associate a pipe with it's buffer io indexes. More...

Detailed Description

Class to manage sets of io chains.

The pump class provides a thread abstraction for doing IO based communication between two threads in a structured and optimized for processor time. The primary usage is to create a pump, and call pump() on a thread used for IO and call respond() on a thread that is expected to do higher level processing. You can call almost any other method from any thread - see notes for each method for details. In order for the threading abstraction to work, you need to call prime() with a valid apr pool. A pump instance manages much of the state for the pipe, including the list of pipes in the chain, the channel for each element in the chain, the buffer, and if any pipe has marked the stream or process as done. Pipes can also set file descriptor based conditional statements so that calls to process do not happen until data is ready to be read or written. Pipes control execution of calls to process by returning a status code such as STATUS_OK or STATUS_BREAK. One way to conceptualize the way IO will work is that a pump combines the unit processing of pipes to behave like file pipes on the unix command line.

Definition at line 81 of file llpumpio.h.

Member Typedef Documentation

typedef std::vector<LLIOPipe::ptr_t> LLPumpIO::chain_t

Typedef for having a chain of pipes.

Definition at line 108 of file llpumpio.h.

typedef std::vector<LLLinkInfo> LLPumpIO::links_t

Typedef for having a chain of LLLinkInfo instances.

Definition at line 136 of file llpumpio.h.

typedef std::vector<LLChainInfo> LLPumpIO::pending_chains_t [protected]

Definition at line 370 of file llpumpio.h.

typedef std::list<LLChainInfo> LLPumpIO::running_chains_t [protected]

Definition at line 372 of file llpumpio.h.

typedef running_chains_t::iterator LLPumpIO::current_chain_t [protected]

Definition at line 375 of file llpumpio.h.

typedef std::vector<LLChainInfo> LLPumpIO::callbacks_t [protected]

Definition at line 381 of file llpumpio.h.

Member Enumeration Documentation

enum LLPumpIO::EControl

Enumeration to send commands to the pump.

Enumerator:

PAUSE
RESUME

Definition at line 310 of file llpumpio.h.

enum LLPumpIO::EState [protected]

State of the pump.

Enumerator:

NORMAL
PAUSING
PAUSED

Definition at line 327 of file llpumpio.h.

Constructor & Destructor Documentation

LLPumpIO::LLPumpIO ( apr_pool_t * pool )

Constructor.

LLPumpIO

Definition at line 169 of file llpumpio.cpp.

References initialize(), and LLMemType::MTYPE_IO_PUMP.

Here is the call graph for this function:

LLPumpIO::~LLPumpIO ( )

Destructor.

Definition at line 185 of file llpumpio.cpp.

References cleanup(), and LLMemType::MTYPE_IO_PUMP.

Here is the call graph for this function:

Member Function Documentation

bool LLPumpIO::prime ( apr_pool_t * pool )

Prepare this pump for usage.

If you fail to call this method prior to use, the pump will try to work, but will not come with any thread locking mechanisms.

Parameters:

pool

The apr pool to use.

Returns:: Returns true if the pump is primed.

Definition at line 191 of file llpumpio.cpp.

References cleanup(), initialize(), LLMemType::MTYPE_IO_PUMP, and NULL.

Referenced by LLCrashLogger::init().

Here is the call graph for this function:

Here is the caller graph for this function:

bool LLPumpIO::addChain	(	const chain_t &	chain,
		F32	timeout
	)

Add a chain to this pump and process in the next cycle.

This method will automatically generate a buffer and assign each link in the chain as if it were the consumer to the previous.

Parameters:

	chain	The pipes for the chain
	timeout	The number of seconds in the future to expire. Pass in 0.0f to never expire.

Returns:: Returns true if anything was added to the pump.

Definition at line 199 of file llpumpio.cpp.

References lldebugs, llendl, LLPumpIO::LLChainInfo::mChainLinks, mChainsMutex, LLPumpIO::LLLinkInfo::mChannels, LLPumpIO::LLChainInfo::mData, mPendingChains, LLPumpIO::LLLinkInfo::mPipe, LLMemType::MTYPE_IO_PUMP, and LLPumpIO::LLChainInfo::setTimeoutSeconds().

Referenced by LLDeferredChain::addToPump(), LLIOHTTPServer::create(), tut::HTTPServiceTestData::makeRequest(), LLSDRPCClient::process_impl(), LLIOAddChain::process_impl(), LLIOServerSocket::process_impl(), LLHTTPResponder::process_impl(), tut::rpc_server_data::pump_loop(), request(), and LLVoiceClient::stateMachine().

Here is the call graph for this function:

Here is the caller graph for this function:

bool LLPumpIO::addChain	(	const links_t &	links,
		LLIOPipe::buffer_ptr_t	data,
		LLSD	context,
		F32	timeout
	)

Add a chain to this pump and process in the next cycle.

This method provides a slightly more sophisticated method for adding a chain where the caller can specify which link elements are on what channels. This method will fail if no buffer is provided since any calls to generate new channels for the buffers will cause unpredictable interleaving of data.

Parameters:

	links	The pipes and io indexes for the chain
	data	Shared pointer to data buffer
	context	Potentially undefined context meta-data for chain.
	timeout	The number of seconds in the future to expire. Pass in 0.0f to never expire.

Returns:: Returns true if anything was added to the pump.

Definition at line 229 of file llpumpio.cpp.

References lldebugs, llendl, LLPumpIO::LLChainInfo::mChainLinks, mChainsMutex, LLPumpIO::LLChainInfo::mContext, LLPumpIO::LLChainInfo::mData, mPendingChains, LLMemType::MTYPE_IO_PUMP, and LLPumpIO::LLChainInfo::setTimeoutSeconds().

Here is the call graph for this function:

bool LLPumpIO::setTimeoutSeconds ( F32 timeout )

Set or clear a timeout for the running chain.

Parameters:

timeout

The number of seconds in the future to expire. Pass in 0.0f to never expire.

Returns:: Returns true if the timer was set.

Definition at line 261 of file llpumpio.cpp.

References mCurrentChain.

bool LLPumpIO::setConditional	(	LLIOPipe *	pipe,
		const apr_pollfd_t *	poll
	)

Set up file descriptors for for the running chain.

See also:: rebuildPollset()

There is currently a limit of one conditional per pipe. *NOTE: The internal mechanism for building a pollset based on pipe/pollfd/chain generates an epoll error on linux (and probably behaves similarly on other platforms) because the pollset rebuilder will add each apr_pollfd_t serially. This does not matter for pipes on the same chain, since any signalled pipe will eventually invoke a call to process(), but is a problem if the same apr_pollfd_t is on different chains. Once we have more than just network i/o on the pump, this might matter. *FIX: Given the structure of the pump and pipe relationship, this should probably go through a different mechanism than the pump. I think it would be best if the pipe had some kind of controller which was passed into process() rather than the pump which exposed this interface.

Parameters:

	pipe	The pipe which is setting a conditional
	poll	The entire socket and read/write condition - null to remove

Returns:: Returns true if the poll state was set.

Definition at line 302 of file llpumpio.cpp.

References events_2_string(), ll_debug_poll_fd(), lldebugs, llendl, mPollsetClientID, mPool, mRebuildPollset, LLMemType::MTYPE_IO_PUMP, and S32.

Referenced by LLIOServerSocket::process_impl(), LLIOSocketWriter::process_impl(), and LLIOSocketReader::process_impl().

Here is the call graph for this function:

Here is the caller graph for this function:

S32 LLPumpIO::setLock ( )

Lock the current chain.

See also:: sleepChain() since it relies on the implementation of this method.

This locks the currently running chain so that no more calls to process() until you call clearLock() with the lock identifier. *FIX: Given the structure of the pump and pipe relationship, this should probably go through a different mechanism than the pump. I think it would be best if the pipe had some kind of controller which was passed into process() rather than the pump which exposed this interface.

Returns:: Returns the lock identifer to be used in clearLock() or 0 on failure.

Definition at line 356 of file llpumpio.cpp.

References mCurrentChain, and mNextLock.

Referenced by LLHTTPPipe::lockChain(), LLSDRPCServer::process_impl(), and sleepChain().

Here is the caller graph for this function:

void LLPumpIO::clearLock ( S32 key )

Clears the identified lock.

Parameters:

links

A container for the links which will be appended

Definition at line 384 of file llpumpio.cpp.

References mChainsMutex, and mClearLocks.

Referenced by LLSDRPCServer::clearLock(), LLSDRPCServer::process_impl(), LLChainSleeper::run(), and LLHTTPPipe::unlockChain().

Here is the caller graph for this function:

bool LLPumpIO::sleepChain ( F64 seconds )

Stop processing a chain for a while.

See also:: setLock()

This method will not update the timeout for this chain, so it is possible to sleep the chain until it is collected by the pump during a timeout cleanup.

Parameters:

seconds

The number of seconds in the future to resume processing.

Returns:: Returns true if the

Definition at line 398 of file llpumpio.cpp.

References LLRunner::addRunnable(), LLChainSleeper::build(), indra::ipc::xml_rpc::handle(), mRunner, LLRunner::RUN_IN, S32, and setLock().

Referenced by LLIOSleeper::process_impl(), and LLIOSleep::process_impl().

Here is the call graph for this function:

Here is the caller graph for this function:

bool LLPumpIO::copyCurrentLinkInfo ( links_t & links ) const

Copy the currently running chain link info.

*FIX: Given the structure of the pump and pipe relationship, this should probably go through a different mechanism than the pump. I think it would be best if the pipe had some kind of controller which was passed into process() rather than the pump which exposed this interface.

Parameters:

links

A container for the links which will be appended

Returns:: Returns true if the currently running chain was copied.

Definition at line 414 of file llpumpio.cpp.

References mCurrentChain, and LLMemType::MTYPE_IO_PUMP.

Referenced by LLHTTPResponder::process_impl().

Here is the caller graph for this function:

void LLPumpIO::pump ( const S32 & poll_timeout )

Call this method to call process on all running chains.

This method iterates through the running chains, and if all pipe on a chain are unconditionally ready or if any pipe has any conditional processiong condition then process will be called on every chain which has requested processing. that chain has a file descriptor ready, process() will be called for all pipes which have requested it.

Definition at line 434 of file llpumpio.cpp.

References DEFAULT_CHAIN_EXPIRY_SECS, END_PUMP_DEBUG, events_2_string(), LLFastTimer::FTM_PUMP, handleChainError(), ll_debug_poll_fd(), lldebugs, llendl, llinfos, llwarns, mChainsMutex, mClearLocks, mCurrentChain, mPendingChains, mPollset, mRebuildPollset, mRunner, mRunningChains, mState, LLMemType::MTYPE_IO_PUMP, NULL, PAUSED, PAUSING, processChain(), PUMP_DEBUG, rebuildPollset(), LLRunner::run(), S32, LLIOPipe::STATUS_ERROR, LLIOPipe::STATUS_EXPIRED, and LLIOPipe::STATUS_LOST_CONNECTION.

Referenced by LLMessageSystem::checkAllMessages(), LLAppViewer::mainLoop(), pump_loop(), tut::rpc_server_data::pump_loop(), tut::HTTPServiceTestData::pumpPipe(), tut::HTTPClientTestData::runThePump(), and LLCrashLogger::updateApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLPumpIO::pump ( )

Definition at line 428 of file llpumpio.cpp.

References DEFAULT_POLL_TIMEOUT.

bool LLPumpIO::respond ( LLIOPipe * pipe )

Add a chain to a special queue which will be called during the next call to callback() and then dropped from the queue.

Parameters:

	chain	The IO chain that will get one `process()`. Add pipe to a special queue which will be called during the next call to `callback()` and then dropped from the queue. This call will add a single pipe, with no buffer, context, or channel information to the callback queue. It will be called once, and then dropped.
	pipe	A single io pipe which will be called

Returns:: Returns true if anything was added to the pump.

Definition at line 721 of file llpumpio.cpp.

References mCallbackMutex, LLPumpIO::LLChainInfo::mChainLinks, mPendingCallbacks, LLPumpIO::LLLinkInfo::mPipe, LLMemType::MTYPE_IO_PUMP, and NULL.

Referenced by LLURLRequest::handleError(), LLURLRequest::process_impl(), LLSDRPCServer::process_impl(), and LLSDRPCClient::process_impl().

Here is the caller graph for this function:

bool LLPumpIO::respond	(	const links_t &	links,
		LLIOPipe::buffer_ptr_t	data,
		LLSD	context
	)

Add a chain to a special queue which will be called during the next call to callback() and then dropped from the queue.

It is important to remember that you should not add a data buffer or context which may still be in another chain - that will almost certainly lead to a problems. Ensure that you are done reading and writing to those parameters, have new generated, or empty pointers.

Parameters:

	links	The pipes and io indexes for the chain
	data	Shared pointer to data buffer
	context	Potentially undefined context meta-data for chain.

Returns:: Returns true if anything was added to the pump.

Definition at line 737 of file llpumpio.cpp.

References mCallbackMutex, LLPumpIO::LLChainInfo::mChainLinks, LLPumpIO::LLChainInfo::mContext, LLPumpIO::LLChainInfo::mData, mPendingCallbacks, and LLMemType::MTYPE_IO_PUMP.

void LLPumpIO::callback ( )

Run through the callback queue and call process().

This call will process all prending responses and call process on each. This method will then drop all processed callback requests which may lead to deleting the referenced objects.

Definition at line 761 of file llpumpio.cpp.

References mCallbackMutex, mCallbacks, mPendingCallbacks, LLMemType::MTYPE_IO_PUMP, and processChain().

Referenced by LLMessageSystem::checkAllMessages(), LLAppViewer::mainLoop(), pump_loop(), tut::rpc_server_data::pump_loop(), tut::HTTPServiceTestData::pumpPipe(), tut::HTTPClientTestData::runThePump(), and LLCrashLogger::updateApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLPumpIO::control ( LLPumpIO::EControl op )

Send a command to the pump.

Parameters:

op

What control to send to the pump.

Definition at line 792 of file llpumpio.cpp.

References mChainsMutex, mState, NORMAL, PAUSE, PAUSING, and RESUME.

void LLPumpIO::initialize ( apr_pool_t * pool ) [protected]

Definition at line 811 of file llpumpio.cpp.

References mCallbackMutex, mChainsMutex, mPool, and LLMemType::MTYPE_IO_PUMP.

Referenced by LLPumpIO(), and prime().

Here is the caller graph for this function:

void LLPumpIO::cleanup ( ) [protected]

Definition at line 823 of file llpumpio.cpp.

References mCallbackMutex, mChainsMutex, mCurrentPool, mPollset, mPool, LLMemType::MTYPE_IO_PUMP, and NULL.

Referenced by prime(), and ~LLPumpIO().

Here is the caller graph for this function:

void LLPumpIO::rebuildPollset ( ) [protected]

Given the internal state of the chains, rebuild the pollset.

See also:: setConditional()

Definition at line 846 of file llpumpio.cpp.

References ll_apr_warn_status(), mCurrentPool, mCurrentPoolReallocCount, mPollset, mPool, mRunningChains, LLMemType::MTYPE_IO_PUMP, NULL, S32, and indra::ipc::saranwrap::status().

Referenced by pump().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLPumpIO::processChain ( LLChainInfo & chain ) [protected]

Process the chain passed in.

This method will potentially modify the internals of the chain. On end, the chain.mHead will equal chain.mChainLinks.end().

Parameters:

chain

The LLChainInfo object to work on.

Definition at line 898 of file llpumpio.cpp.

References handleChainError(), LLIOPipe::isError(), LLIOPipe::isSuccess(), llendl, llinfos, LLIOPipe::lookupStatusString(), LLPumpIO::LLChainInfo::mChainLinks, LLPumpIO::LLChainInfo::mContext, LLPumpIO::LLChainInfo::mData, LLPumpIO::LLChainInfo::mEOS, LLPumpIO::LLChainInfo::mHead, LLMemType::MTYPE_IO_PUMP, NULL, PUMP_DEBUG, S32, indra::ipc::saranwrap::status(), LLIOPipe::STATUS_BREAK, LLIOPipe::STATUS_DONE, LLIOPipe::STATUS_NEED_PROCESS, LLIOPipe::STATUS_OK, and LLIOPipe::STATUS_STOP.

Referenced by callback(), and pump().

Here is the call graph for this function:

Here is the caller graph for this function:

bool LLPumpIO::handleChainError	(	LLChainInfo &	chain,
		LLIOPipe::EStatus	error
	)			`[protected]`

Rewind through the chain to try to recover from an error.

This method will potentially modify the internals of the chain.

Parameters:

chain

The LLChainInfo object to work on.

Returns:: Retuns true if someone handled the error

Definition at line 1081 of file llpumpio.cpp.

References LLIOPipe::isSuccess(), lldebugs, llendl, llinfos, LLIOPipe::lookupStatusString(), LLPumpIO::LLChainInfo::mChainLinks, LLPumpIO::LLChainInfo::mHead, LLMemType::MTYPE_IO_PUMP, LLIOPipe::STATUS_BREAK, LLIOPipe::STATUS_DONE, LLIOPipe::STATUS_ERROR, LLIOPipe::STATUS_NEED_PROCESS, LLIOPipe::STATUS_OK, and LLIOPipe::STATUS_STOP.

Referenced by processChain(), and pump().

Here is the call graph for this function:

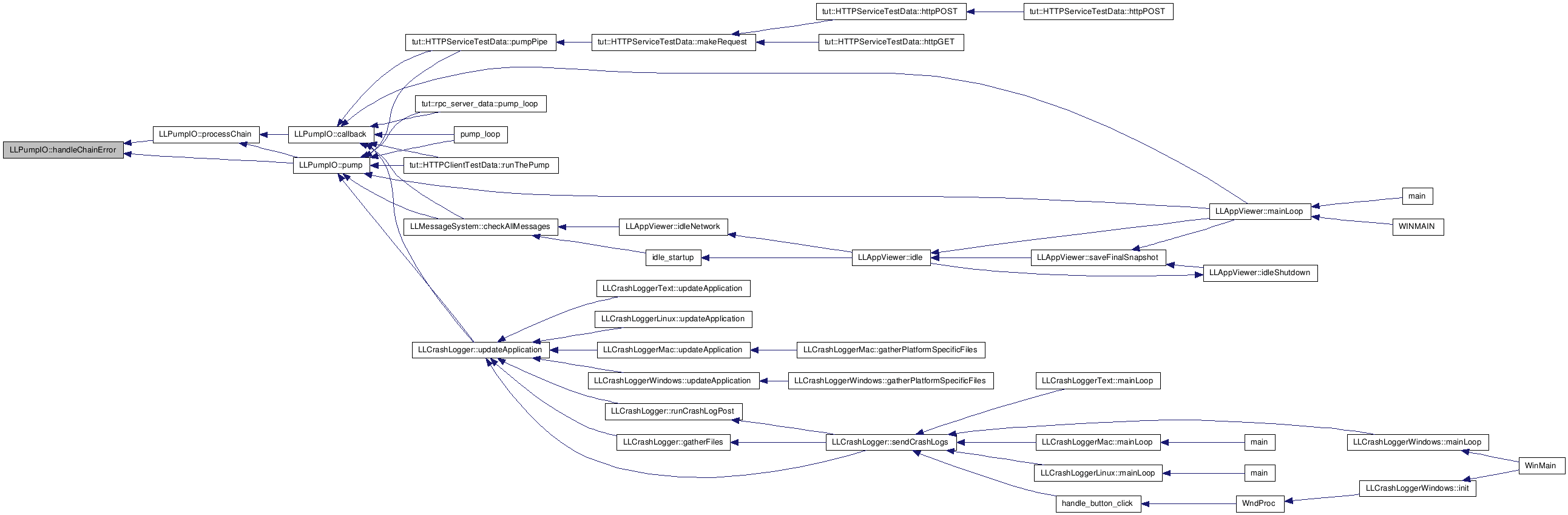

Here is the caller graph for this function:

running_chains_t::size_type LLPumpIO::runningChains ( ) const [inline]

Return number of running chains.

*NOTE: This is only used in debugging and not considered efficient or safe enough for production use.

Definition at line 435 of file llpumpio.h.

References mRunningChains.

Member Data Documentation

EState LLPumpIO::mState [protected]

Definition at line 335 of file llpumpio.h.

Referenced by control(), and pump().

bool LLPumpIO::mRebuildPollset [protected]

Definition at line 336 of file llpumpio.h.

Referenced by pump(), and setConditional().

apr_pollset_t* LLPumpIO::mPollset [protected]

Definition at line 337 of file llpumpio.h.

Referenced by cleanup(), pump(), and rebuildPollset().

S32 LLPumpIO::mPollsetClientID [protected]

Definition at line 338 of file llpumpio.h.

Referenced by setConditional().

S32 LLPumpIO::mNextLock [protected]

Definition at line 339 of file llpumpio.h.

Referenced by setLock().

std::set<S32> LLPumpIO::mClearLocks [protected]

Definition at line 340 of file llpumpio.h.

Referenced by clearLock(), and pump().

LLRunner LLPumpIO::mRunner [protected]

Definition at line 344 of file llpumpio.h.

Referenced by pump(), and sleepChain().

pending_chains_t LLPumpIO::mPendingChains [protected]

Definition at line 371 of file llpumpio.h.

Referenced by addChain(), and pump().

running_chains_t LLPumpIO::mRunningChains [protected]

Definition at line 373 of file llpumpio.h.

Referenced by pump(), rebuildPollset(), and runningChains().

current_chain_t LLPumpIO::mCurrentChain [protected]

Definition at line 376 of file llpumpio.h.

Referenced by copyCurrentLinkInfo(), pump(), setLock(), and setTimeoutSeconds().

callbacks_t LLPumpIO::mPendingCallbacks [protected]

Definition at line 382 of file llpumpio.h.

Referenced by callback(), and respond().

callbacks_t LLPumpIO::mCallbacks [protected]

Definition at line 383 of file llpumpio.h.

Referenced by callback().

apr_pool_t* LLPumpIO::mPool [protected]

Definition at line 386 of file llpumpio.h.

Referenced by cleanup(), initialize(), rebuildPollset(), and setConditional().

apr_pool_t* LLPumpIO::mCurrentPool [protected]

Definition at line 387 of file llpumpio.h.

Referenced by cleanup(), and rebuildPollset().

S32 LLPumpIO::mCurrentPoolReallocCount [protected]

Definition at line 388 of file llpumpio.h.

Referenced by rebuildPollset().

int* LLPumpIO::mChainsMutex [protected]

Definition at line 394 of file llpumpio.h.

Referenced by addChain(), cleanup(), clearLock(), control(), initialize(), and pump().

int* LLPumpIO::mCallbackMutex [protected]

Definition at line 395 of file llpumpio.h.

Referenced by callback(), cleanup(), initialize(), and respond().

The documentation for this class was generated from the following files:

llmessage/llpumpio.h
llmessage/llpumpio.cpp


Public Types
enum	EControl { PAUSE, RESUME }
	Enumeration to send commands to the pump. More...
typedef std::vector < LLIOPipe::ptr_t >	chain_t
	Typedef for having a chain of pipes.
typedef std::vector< LLLinkInfo >	links_t
	Typedef for having a chain of `LLLinkInfo` instances.
Public Member Functions
	LLPumpIO (apr_pool_t *pool)
	Constructor.
	~LLPumpIO ()
	Destructor.
bool	prime (apr_pool_t *pool)
	Prepare this pump for usage.
bool	addChain (const chain_t &chain, F32 timeout)
	Add a chain to this pump and process in the next cycle.
bool	addChain (const links_t &links, LLIOPipe::buffer_ptr_t data, LLSD context, F32 timeout)
	Add a chain to this pump and process in the next cycle.
bool	setTimeoutSeconds (F32 timeout)
	Set or clear a timeout for the running chain.
bool	setConditional (LLIOPipe pipe, const apr_pollfd_t poll)
	Set up file descriptors for for the running chain.
S32	setLock ()
	Lock the current chain.
void	clearLock (S32 key)
	Clears the identified lock.
bool	sleepChain (F64 seconds)
	Stop processing a chain for a while.
bool	copyCurrentLinkInfo (links_t &links) const
	Copy the currently running chain link info.
void	pump (const S32 &poll_timeout)
	Call this method to call process on all running chains.
void	pump ()
bool	respond (LLIOPipe *pipe)
	Add a chain to a special queue which will be called during the next call to `callback()` and then dropped from the queue.
bool	respond (const links_t &links, LLIOPipe::buffer_ptr_t data, LLSD context)
	Add a chain to a special queue which will be called during the next call to `callback()` and then dropped from the queue.
void	callback ()
	Run through the callback queue and call `process()`.
void	control (EControl op)
	Send a command to the pump.
running_chains_t::size_type	runningChains () const
	Return number of running chains.
Protected Types
enum	EState { NORMAL, PAUSING, PAUSED }
	State of the pump. More...
typedef std::vector< LLChainInfo >	pending_chains_t
typedef std::list< LLChainInfo >	running_chains_t
typedef running_chains_t::iterator	current_chain_t
typedef std::vector< LLChainInfo >	callbacks_t
Protected Member Functions
void	initialize (apr_pool_t *pool)
void	cleanup ()
void	rebuildPollset ()
	Given the internal state of the chains, rebuild the pollset.
void	processChain (LLChainInfo &chain)
	Process the chain passed in.
bool	handleChainError (LLChainInfo &chain, LLIOPipe::EStatus error)
	Rewind through the chain to try to recover from an error.
Protected Attributes
EState	mState
bool	mRebuildPollset
apr_pollset_t *	mPollset
S32	mPollsetClientID
S32	mNextLock
std::set< S32 >	mClearLocks
LLRunner	mRunner
pending_chains_t	mPendingChains
running_chains_t	mRunningChains
current_chain_t	mCurrentChain
callbacks_t	mPendingCallbacks
callbacks_t	mCallbacks
apr_pool_t *	mPool
apr_pool_t *	mCurrentPool
S32	mCurrentPoolReallocCount
int *	mChainsMutex
int *	mCallbackMutex
Classes
struct	LLChainInfo
struct	LLLinkInfo
	Struct to associate a pipe with it's buffer io indexes. More...
