LLUI Class Reference

#include <llui.h>

Collaboration diagram for LLUI:

Collaboration graph
[legend]

List of all members.

Static Public Member Functions

static void initClass (LLControlGroup *config, LLControlGroup *colors, LLImageProviderInterface *image_provider, LLUIAudioCallback audio_callback=NULL, const LLVector2 *scale_factor=NULL, const LLString &language=LLString::null)
static void cleanupClass ()
static void pushMatrix ()
static void popMatrix ()
static void loadIdentity ()
static void translate (F32 x, F32 y, F32 z=0.0f)
static LLString locateSkin (const LLString &filename)
static void setCursorPositionScreen (S32 x, S32 y)
static void setCursorPositionLocal (const LLView *viewp, S32 x, S32 y)
static void setScaleFactor (const LLVector2 &scale_factor)
static void setLineWidth (F32 width)
static LLUIImage * getUIImage (const LLString &name)
static LLVector2 getWindowSize ()
static void screenPointToGL (S32 screen_x, S32 screen_y, S32 *gl_x, S32 *gl_y)
static void glPointToScreen (S32 gl_x, S32 gl_y, S32 *screen_x, S32 *screen_y)
static void screenRectToGL (const LLRect &screen, LLRect *gl)
static void glRectToScreen (const LLRect &gl, LLRect *screen)
static void setHtmlHelp (LLHtmlHelp *html_help)
static void setQAMode (BOOL b)

Static Public Attributes

static LLControlGroup * sConfigGroup = NULL
static LLControlGroup * sColorsGroup = NULL
static LLImageProviderInterface * sImageProvider = NULL
static LLUIAudioCallback sAudioCallback = NULL
static LLVector2 sGLScaleFactor
static LLWindow * sWindow = NULL
static BOOL sShowXUINames = FALSE
static LLHtmlHelp * sHtmlHelp = NULL
static BOOL sQAMode = FALSE

Detailed Description

Definition at line 156 of file llui.h.

Member Function Documentation

void LLUI::initClass ( LLControlGroup *  config,
LLControlGroup *  colors,
LLImageProviderInterface *  image_provider,
LLUIAudioCallback  audio_callback = NULL,
const LLVector2 *  scale_factor = NULL,
const LLString &  language = LLString::null
) [static]

Definition at line 1571 of file llui.cpp.

References LLControlGroup::getBOOL(), LLControlGroup::getColor(), LLControlGroup::getControl(), LLControlVariable::getSignal(), handleShowXUINamesChanged(), NULL, sAudioCallback, sColorsGroup, sConfigGroup, sGLScaleFactor, sImageProvider, LLFontGL::sShadowColor, sShowXUINames, and sWindow.

Referenced by LLAppViewer::init().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLUI::cleanupClass (  )  [static]

Definition at line 1590 of file llui.cpp.

References LLImageProviderInterface::cleanUp(), LLLineEditor::cleanupClass(), and sImageProvider.

Referenced by LLAppViewer::cleanup().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLUI::pushMatrix (  )  [static]

Definition at line 1607 of file llui.cpp.

References gGL, LLGLImmediate::pushMatrix(), LLFontGL::sCurOrigin, and LLFontGL::sOriginStack.

Referenced by LLViewerWindow::draw(), LLNotifyBox::draw(), LLView::draw(), LLTabContainer::draw(), LLScrollListItemSeparator::draw(), LLScrollListItemComment::draw(), LLScrollListItem::draw(), LLMenuHolderGL::draw(), LLView::drawChild(), LLView::drawDebugRect(), hud_render_text(), and LLHUDText::renderText().

Here is the call graph for this function:

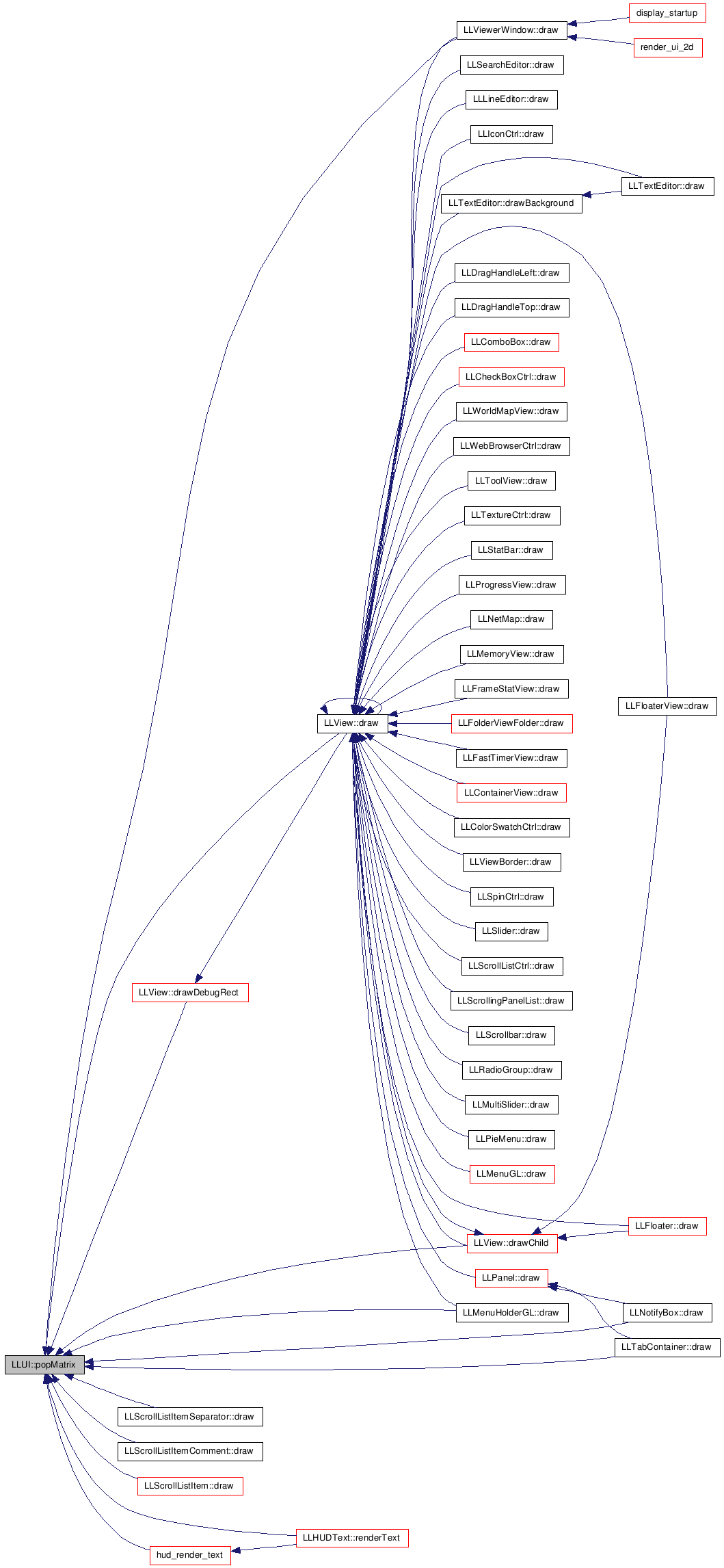

Here is the caller graph for this function:

void LLUI::popMatrix (  )  [static]

Definition at line 1614 of file llui.cpp.

References gGL, LLGLImmediate::popMatrix(), LLFontGL::sCurOrigin, and LLFontGL::sOriginStack.

Referenced by LLViewerWindow::draw(), LLNotifyBox::draw(), LLView::draw(), LLTabContainer::draw(), LLScrollListItemSeparator::draw(), LLScrollListItemComment::draw(), LLScrollListItem::draw(), LLMenuHolderGL::draw(), LLView::drawChild(), LLView::drawDebugRect(), hud_render_text(), and LLHUDText::renderText().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLUI::loadIdentity (  )  [static]

Definition at line 1622 of file llui.cpp.

References LLCoord::mX, LLCoord::mY, LLCoordFont::mZ, and LLFontGL::sCurOrigin.

Referenced by hud_render_text().

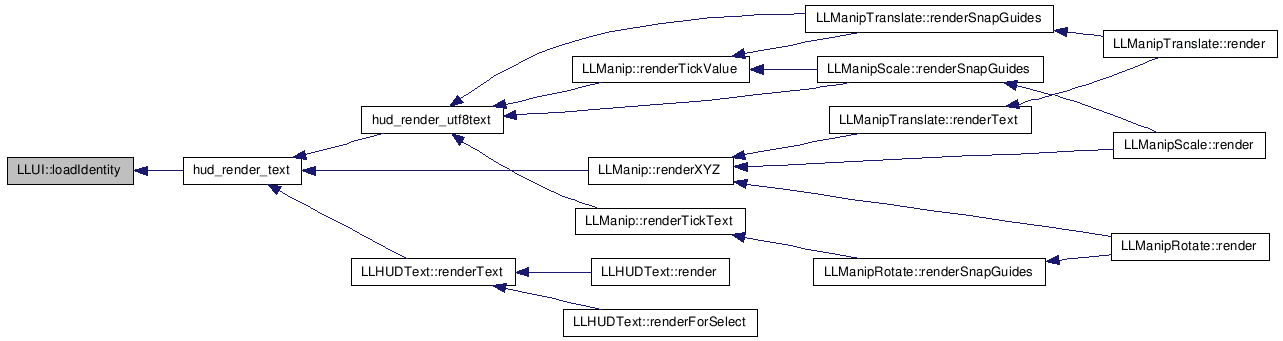

Here is the caller graph for this function:

void LLUI::translate ( F32  x,
F32  y,
F32  z = 0.0f
) [static]

Definition at line 1598 of file llui.cpp.

References gGL, LLCoord::mX, LLCoord::mY, LLCoordFont::mZ, S32, LLFontGL::sCurOrigin, and LLGLImmediate::translatef().

Referenced by LLViewerWindow::draw(), LLNotifyBox::draw(), LLView::draw(), LLTabContainer::draw(), LLScrollListItemSeparator::draw(), LLScrollListItemComment::draw(), LLScrollListItem::draw(), LLMenuHolderGL::draw(), LLView::drawChild(), LLView::drawDebugRect(), hud_render_text(), and LLHUDText::renderText().

Here is the call graph for this function:

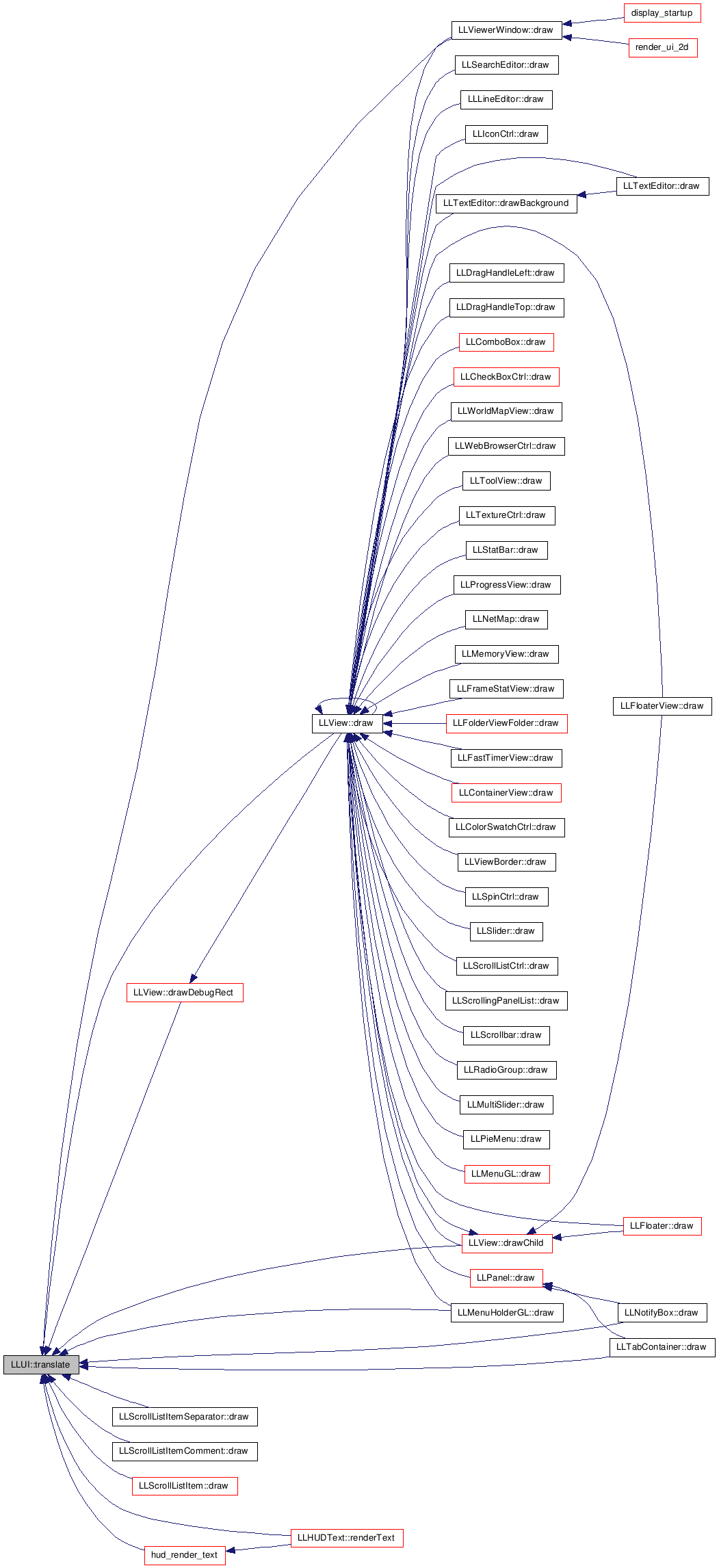

Here is the caller graph for this function:

LLString LLUI::locateSkin ( const LLString &  filename  )  [static]

Definition at line 1666 of file llui.cpp.

References LLControlGroup::controlExists(), LLDir::fileExists(), gDirUtilp, LLDir::getDirDelimiter(), LLDir::getExpandedFilename(), LLControlGroup::getString(), LL_PATH_APP_SETTINGS, LL_PATH_SKINS, LL_PATH_USER_SETTINGS, and sConfigGroup.

Referenced by idle_startup().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLUI::setCursorPositionScreen ( S32  x,
S32  y
) [static]

Definition at line 1644 of file llui.cpp.

References LLWindow::convertCoords(), LLView::getWindow(), llround(), LLVector2::mV, S32, LLWindow::setCursorPosition(), sGLScaleFactor, VX, and VY.

Referenced by LLManipTranslate::handleMouseDownOnPart(), LLToolCamera::handleMouseUp(), LLViewerWindow::moveCursorToCenter(), LLToolGrab::onMouseCaptureLost(), and setCursorPositionLocal().

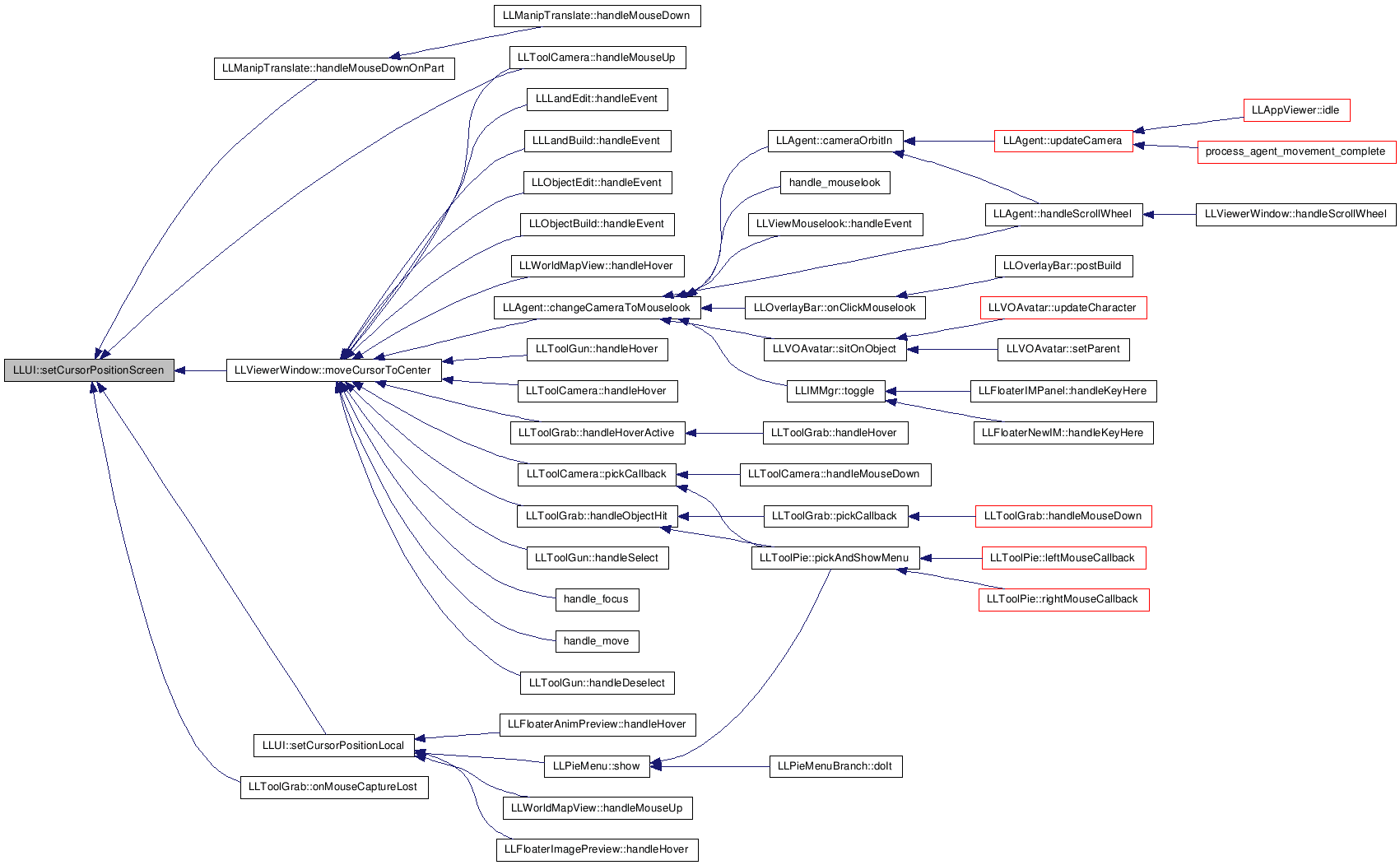

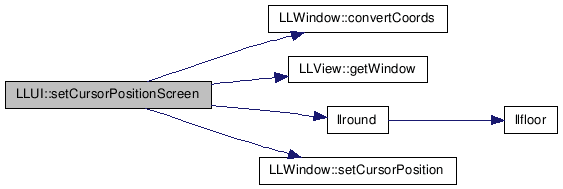

Here is the call graph for this function:

Here is the caller graph for this function:

void LLUI::setCursorPositionLocal ( const LLView *  viewp,
S32  x,
S32  y
) [static]

Definition at line 1657 of file llui.cpp.

References LLView::localPointToScreen(), S32, and setCursorPositionScreen().

Referenced by LLFloaterImagePreview::handleHover(), LLFloaterAnimPreview::handleHover(), LLWorldMapView::handleMouseUp(), and LLPieMenu::show().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLUI::setScaleFactor ( const LLVector2 &  scale_factor  )  [static]

Definition at line 1631 of file llui.cpp.

References sGLScaleFactor.

Referenced by LLViewerWindow::LLViewerWindow(), and LLViewerWindow::reshape().

Here is the caller graph for this function:

void LLUI::setLineWidth ( F32  width  )  [static]

Definition at line 1637 of file llui.cpp.

References LLGLImmediate::flush(), gGL, lerp(), LLVector2::mV, sGLScaleFactor, VX, and VY.

Referenced by LLViewerWindow::draw(), LLPieMenu::draw(), LLFloater::draw(), drawDot(), LLViewBorder::drawOnePixelLines(), gl_stippled_line_3d(), LLManipTranslate::renderArrow(), LLManip::renderGuidelines(), LLViewerParcelMgr::renderRect(), LLHUDText::renderText(), LLManipTranslate::renderTranslationHandles(), LLViewerObject::setLineWidthForWindowSize(), and LLManip::setupSnapGuideRenderPass().

Here is the call graph for this function:

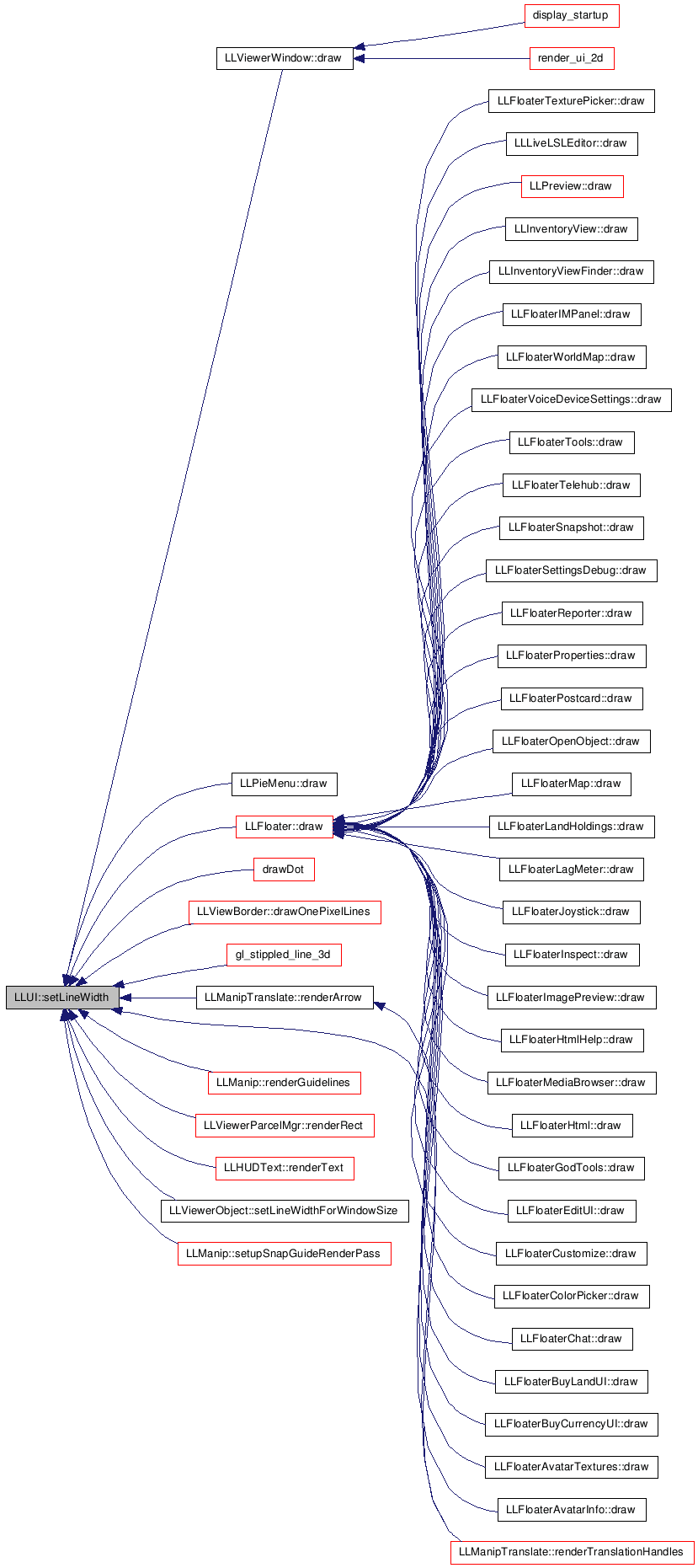

Here is the caller graph for this function:

LLUIImage * LLUI::getUIImage ( const LLString &  name  )  [static]

Definition at line 1737 of file llui.cpp.

References LLImageProviderInterface::getUIImage(), NULL, and sImageProvider.

Referenced by LLEmbeddedItems::bindEmbeddedChars(), LLToolGun::draw(), LLProgressView::draw(), LLHoverView::draw(), LLFastTimerView::draw(), LLConsole::draw(), LLNotifyBox::drawBackground(), get_item_icon(), LLTaskCategoryBridge::getIcon(), LLFolderBridge::getIcon(), LLItemBridge::getIcon(), LLWorldMapView::initClass(), LLColorSwatchCtrl::LLColorSwatchCtrl(), LLFlyoutButton::LLFlyoutButton(), LLFolderViewItem::LLFolderViewItem(), LLLineEditor::LLLineEditor(), LLPanelLogin::LLPanelLogin(), LLVisualParamHint::LLVisualParamHint(), LLLineEditor::parseImage(), LLHUDText::renderText(), LLManip::renderXYZ(), LLButton::setImageDisabled(), LLButton::setImageDisabledSelected(), LLButton::setImageHoverSelected(), LLButton::setImageHoverUnselected(), LLButton::setImageOverlay(), LLButton::setImageSelected(), LLButton::setImageUnselected(), and LLScrollListIcon::setValue().

Here is the call graph for this function:

Here is the caller graph for this function:

LLVector2 LLUI::getWindowSize (  )  [static]

Definition at line 1700 of file llui.cpp.

References LLWindow::getSize(), LLVector2::mV, LLCoord::mX, LLCoord::mY, sGLScaleFactor, sWindow, VX, and VY.

Referenced by LLModalDialog::centerOnScreen().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLUI::screenPointToGL ( S32  screen_x,
S32  screen_y,
S32 *  gl_x,
S32 *  gl_y
) [static]

Definition at line 1709 of file llui.cpp.

References llround(), LLVector2::mV, sGLScaleFactor, VX, and VY.

Referenced by LLTextEditor::getPreeditLocation(), LLLineEditor::getPreeditLocation(), and screenRectToGL().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLUI::glPointToScreen ( S32  gl_x,
S32  gl_y,
S32 *  screen_x,
S32 *  screen_y
) [static]

Definition at line 1716 of file llui.cpp.

References llround(), LLVector2::mV, sGLScaleFactor, VX, and VY.

Referenced by glRectToScreen().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLUI::screenRectToGL ( const LLRect &  screen,
LLRect *  gl
) [static]

Definition at line 1723 of file llui.cpp.

References LLRectBase< Type >::mBottom, LLRectBase< Type >::mLeft, LLRectBase< Type >::mRight, LLRectBase< Type >::mTop, and screenPointToGL().

Referenced by LLTextEditor::getPreeditLocation(), and LLLineEditor::getPreeditLocation().

Here is the call graph for this function:

Here is the caller graph for this function:

void LLUI::glRectToScreen ( const LLRect &  gl,
LLRect *  screen
) [static]

Definition at line 1730 of file llui.cpp.

References glPointToScreen(), LLRectBase< Type >::mBottom, LLRectBase< Type >::mLeft, LLRectBase< Type >::mRight, and LLRectBase< Type >::mTop.

Here is the call graph for this function:

void LLUI::setHtmlHelp ( LLHtmlHelp *  html_help  )  [static]

Definition at line 1746 of file llui.cpp.

Referenced by LLViewerHtmlHelp::LLViewerHtmlHelp(), and LLViewerHtmlHelp::~LLViewerHtmlHelp().

Here is the caller graph for this function:

void LLUI::setQAMode ( BOOL  b  )  [static]

Definition at line 1752 of file llui.cpp.

References sQAMode.

Member Data Documentation

LLControlGroup * LLUI::sConfigGroup = NULL [static]

Definition at line 192 of file llui.h.

Referenced by LLFloater::applyRectControl(), LLPanelMsgs::buildLists(), LLMenuBarGL::checkMenuTrigger(), LLView::createRect(), LLStatusBar::draw(), LLTextBox::draw(), LLModalDialog::draw(), LLPieMenu::draw(), LLMenuGL::draw(), LLFloater::draw(), LLButton::draw(), LLAlertDialog::draw(), LLScrollListCtrl::drawItems(), LLView::findControl(), LLUICtrl::focusNextItem(), LLUICtrl::focusPrevItem(), LLPanelDirFind::getSearchURLSuffix(), LLResizeHandle::handleHover(), LLResizeBar::handleHover(), LLMenuBarGL::handleKeyHere(), LLScrollListCtrl::handleUnicodeCharHere(), initClass(), LLColumnHeader::LLColumnHeader(), LLDragHandle::LLDragHandle(), locateSkin(), LLFloaterHtmlHelp::onClickF1HelpLoadURL(), LLComboBox::setButtonVisible(), LLView::setControlValue(), LLUICtrlFactory::setupPaths(), LLPanel::storeRectControl(), and LLComboBox::updateLayout().

LLControlGroup * LLUI::sColorsGroup = NULL [static]

Definition at line 193 of file llui.h.

Referenced by LLView::addColorXML(), LLFloater::buildButtons(), LLAlertDialog::createDialog(), LLStatusBar::draw(), LLTextBox::draw(), LLModalDialog::draw(), LLPieMenu::draw(), LLMenuGL::draw(), LLFloater::draw(), LLAlertDialog::draw(), LLTextEditor::drawClippedSegment(), LLMediaRemoteCtrl::enableMediaButtons(), LLCheckBoxCtrl::fromXML(), LLUICtrlFactory::getAttributeColor(), LLFocusMgr::getFocusColor(), LLPanel::init(), LLButton::init(), initClass(), LLButton::LLButton(), LLNotifyBox::LLNotifyBox(), LLSearchEditor::LLSearchEditor(), LLView::saveColorToXML(), and LLAlertDialog::show().

LLImageProviderInterface * LLUI::sImageProvider = NULL [static]

Definition at line 194 of file llui.h.

Referenced by cleanupClass(), LLScrollbar::draw(), LLMultiSlider::draw(), getUIImage(), initClass(), LLComboBox::LLComboBox(), LLResizeHandle::LLResizeHandle(), LLScrollListText::LLScrollListText(), LLSlider::LLSlider(), LLStyle::setImage(), LLIconCtrl::setImage(), and LLScrollListIcon::setValue().

LLUIAudioCallback LLUI::sAudioCallback = NULL [static]

Definition at line 195 of file llui.h.

Referenced by initClass(), and make_ui_sound().

LLVector2 LLUI::sGLScaleFactor [static]

Definition at line 196 of file llui.h.

Referenced by LLWebBrowserCtrl::convertInputCoords(), LLWorldMapView::draw(), LLWebBrowserCtrl::draw(), LLViewerWindow::draw(), LLLineEditor::draw(), LLButton::draw(), LLTextEditor::drawCursor(), LLTextEditor::getPreeditFontSize(), LLLineEditor::getPreeditFontSize(), getWindowSize(), gl_rect_2d_offset_local(), glPointToScreen(), LLViewerWindow::handlePerFrameHover(), LLToolSelectRect::handleRectangleSelection(), LLAppViewer::init(), initClass(), LLWebBrowserCtrl::LLWebBrowserCtrl(), render_ui_2d(), LLWebBrowserCtrl::reshape(), LLViewerWindow::reshape(), screenPointToGL(), setCursorPositionScreen(), setLineWidth(), setScaleFactor(), LLComboBox::showList(), and LLScreenClipRect::updateScissorRegion().

LLWindow * LLUI::sWindow = NULL [static]

Definition at line 197 of file llui.h.

Referenced by LLView::getWindow(), getWindowSize(), LLView::handleHover(), initClass(), and LLAppViewer::initWindow().

BOOL LLUI::sShowXUINames = FALSE [static]

Definition at line 198 of file llui.h.

Referenced by LLUICtrlFactory::buildFloater(), LLUICtrlFactory::buildMenu(), LLUICtrlFactory::buildPanel(), LLUICtrlFactory::buildPieMenu(), LLViewerWindow::handlePerFrameHover(), handleShowXUINamesChanged(), LLView::handleToolTip(), LLComboBox::handleToolTip(), and initClass().

LLHtmlHelp * LLUI::sHtmlHelp = NULL [static]

Definition at line 199 of file llui.h.

Referenced by clicked_help().

BOOL LLUI::sQAMode = FALSE [static]

Definition at line 205 of file llui.h.

Referenced by LLPanel::getString(), and setQAMode().

The documentation for this class was generated from the following files:
